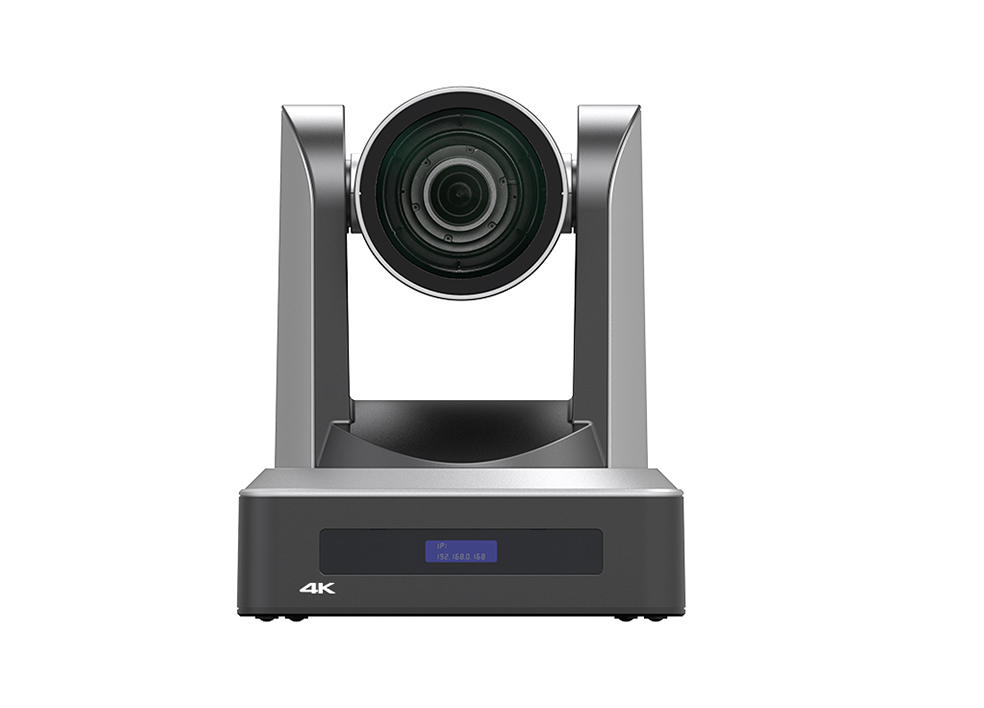

Model No. | VCS-VD20X-4K |
Optical Zoom | 20X |
Digital Zoom | 16X |
Focal Length | F=5.05 ~91.49mm |
FOV | 3.93O ~ 67.35o (D) | 3.81O ~ 60.05O (H) |1.96O ~35.07O (V) |
Aperture Ratio | F1.8 –F2.9 |
Image Sensor | 1/ 2.5 CMOS Sensor |
Effective Pixel | Around 8.5 Million Pixel with 16 : 9 Aspect Ratio |
Video Signal | HDMI 3840x2160/1920x1080P60/59.94/50/30/29.97/25; 1280x720P60/59.94/50 SDI 1920x1080P60/59.94/50/30/29.97/25;1920x1080I60/50/59.94; 1280x720P60/59.94/ 50 USB YUY2/NV12: 1920x1080/1280x720/1024x576/800x600/800x448/640x480/ 640x360/480x270/320x180P30/25/20/15/10/5fps H264/H265/MJPG: 3840x2160/1920x1080/1600x896/1280x720/ 1024x576/960x540/800x600/800x448/720x576/720x480/640x480/
640x360/480x270/352x288/320x240 @60/30/25/20/15/10/5fps LAN
Master Code Stream:
H264/H265: 3840×2160/2592x1944/2304x1296/1920×1080/1280×720
@60/30/25/20/15/10/5fps; Sub Code Stream :
H264/H265: 1920×1080/1280×720/640×360/640×480/320×240/320x180
@60/30/25/20/15/10/5fps;
|
Minimum Illumination | 0.5 Lux (F1.8, AGC On) |
Digital Noise Reduction | 2D & 3D |
White Balance | Auto/Manual/one-key white balance/specified color temperature ( 2400K – 7100K, adjustable 100K steps) |
Focus | Auto/Manual/One button focus |
Aperture | Auto / Manual |
Electronic Shutter | Auto / Manual |
Back Light Compensation | On / Off |
Dynamic Range | Off / Dynamic Range Adjustment |
Video Adjustment | Brightness, Contrast, Sharpness, Horizontal Flip, Vertical Flip, Black & White mode, Gamma Curve, Electronic Zoom, DCI, Ultra Low Light Mode. |
SNR | 50 dB |
Camera Interface | HDMI, SDI, LAN ( Supports POE+), USB 3.0, A-IN, RS-232, RS-232 Out, RS-485, DC-12V, Power Supply, Power Switch |
Video Compression Format | LAN : H.264 , H.265 | USB 3.0 : MJPG, H.264, H.265, YUY2,NV12 |
Video Bit rate | 64-40960 |
Bitrate Control | Fixed Bitrate, Variable Bitrate |
Frequency | 50 Hz – 1 fps ~ 50 fps
60 Hz – 1fps ~ 60 fps |
Audio Input Interface | Dual channel 3.5mm Linear input |
Audio Output Interface | HDMI, LAN, USB3.0, SDI |
Audio Bitrate | 32KbPS, 48Kbps, 64Kbps, 96Kbps,128Kbps |
Audio Compression Format | AAC, G.711A |
Network Interface | 1000M Ethernet Port, Optional POE+ power supply, supports audio & video output |
Network Protocol | RTSP, RTMP, ONVIF, GB/T28181,SRT; NDI(Optional), Dante AV (optional), supports network VISCA control protocol, supports remote upgrade, remote reboot, and remote reset |
Control Interface | RS232-IN, RS232-OUT, RS485 |
Serial Communication Protocol | VISCA/Pelco-D/Pelco-P;Supports baud rate. 115200/38400/9600/4800/2400 |
USB Communication Protocol | UVC (Video Communication Protocol), UAC (Audio Communication Protocol) |
Power Interface | HEC3800 power socket (DC12V) |
Power Adapter | Input AC110V~AC220V ;Output DC12V/1.5A |
Input Voltage | DC12V±10% |
Input Current | ≤1.5 A |
Total Power Consumption | ≤18 W |
Codec | H.264 |
Video Format | 1920*1080/1280*720P60/50/30/25 |
Video Streaming | Unicast or Multicast |
Delay | ≤120ms@1080p60 |
Bandwidth | 4-8Mbps@1080p60 |
Pan Rotation | -170°～+170° |
Tilt Rotation | -30°～+90° |
Pan Control Speed | 0.1°/s ～ 60°/s |
Tilt Control Speed | 0.1°/s ～ 30°/s |
Preset Speed | Pan: 60°/s, Tilt: 30°/s |
Number of Presets | Users can set up to 255 preset positions ( The remote Control is set to call up to 10) |
Tracking Modes | Off, Real-time Tracking, Stage Tracking, Area Tracking, and Intelligent Framing |
Storage Temperature | -10℃ ～ +70℃ |
Storage Humidity | 20% ～ 95% |
Working Temperature | -10℃ ～ +50℃ |
Dimensions | 150（L）mm×150mm（W）×167.5mm（H） |
Weight (Approximately) | 1.4kg |
